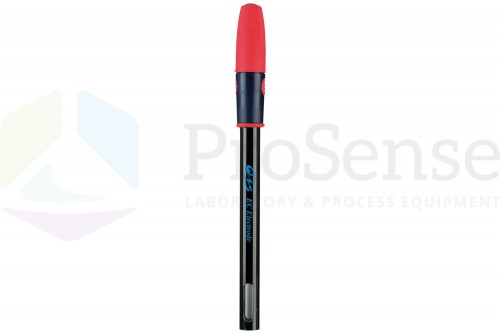

Epoxy EC conductivity electrode, K=0.56, 12x120mm, 30 Kohm NTC
QC4460T10
Epoxy EC conductivity electrode, K=0.56, 12x120mm, 30 Kohm NTC
Epoxy EC conductivity electrode, K=0.56, 12x120mm, 30 Kohm NTC
| Product number | QC4460T10 |
| Application type |
|
- The 4-pole cell eliminates polarization effects and guarantees a high linearity over a wide conductivity range.
| Conductivity electrode | QC4460T10 |
| Range | 0.05..1000 mS/cm |
| Temperature range (°C) | 0..105 |
| Shaft material | Epoxy |
| Shaft diameter (mm) | 12 |
| Shaft length (mm) | 120 |
| Cell type | 4 graphite poles |
| Cell constant (cm-1) | 0.56 |
| Cable length (m) | 10 |
| Connector | LTW (IP67) |
| ATC | NTC 30kOhm |
