Manual Hardness Tester 500N, 16-43mm


Product number     PSDM500-2

  • EP 2.9.8 c& USP1217 compliant
  • Tablet size 16-43mm
  • 1-500N
  • Optional mini printer

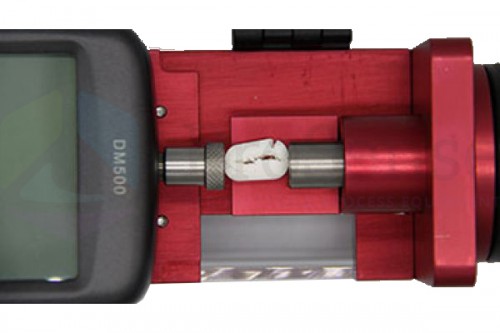

The ProSense Tablet Hardness Tester is a compact instrument for the manual measurement of hardness of tablets, sugar coating, oblong and similar dosage forms.
A load cell with transducer measures the hardness. The standard measuring range is from 1 to 500N or 1 to 1000N with a special transducer.

The results could be stored in a memory and printed with a mini-printer (optional) or send to PC via RS232.
  • Tablet Size 16-43mm
  • Range 1 - 500 Newton
  • Accuracy +/- 0.3% F.S.
  • Measurement units N, Kgf, Ozf or lbf
  • Display 160 x 128 matrix LCD with Backlight
  • Memory 500 data points
  • Power 3.6 VDC 450mAH Ni-Mh rechargeable batteries
  • Charger USB / BM Charger, input 110-240 VAC
  • Height 90mm
  • Width 75mm
  • Length 260mm
  • Weight 1.25 kg
