Epoxy EC conductivity electrode, K=0.56, 12x120mm, 30 Kohm NTC

QC4460T
Epoxy EC conductivity electrode, K=0.56, 12x120mm, 30 Kohm NTC


Product number     QC4460T
Application type
  • General purpose
  • Field

  • The 4-pole cell eliminates polarization effects and guarantees a high linearity over a wide conductivity range.

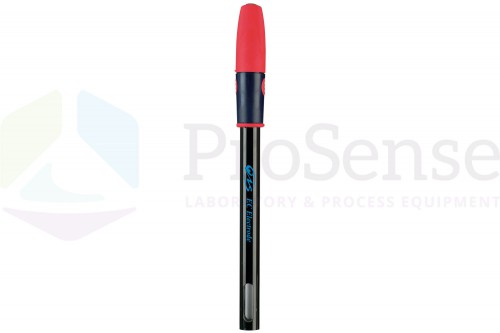

Conductivity electrode QC4460T
Range 0.05..1000 mS/cm
Temperature range (°C) 0..105
Shaft material Epoxy
Shaft diameter (mm) 12
Shaft length (mm) 120
Cell type 4 graphite poles
Cell constant (cm-1) 0.56
Cable length (m) 1.8
Connector LTW (IP67)
ATC NTC 30kOhm
