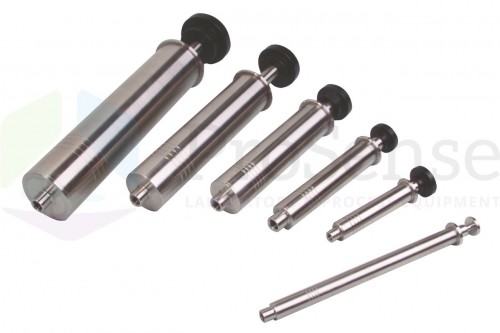

Stainless Steel Syringes
These syringes are intended for high pressure applications with good resistance to most aggressive liquids. All syringe barrels and plungers are manufactured with #316 stainless steel. Syringes are fully autoclavable.

Syringes are guaranteed to be leak free to pressures in excess of 750 psi. 8 mL syringes are guaranteed to be leak free to pressures in excess of 1500 psi.

3 Viton® O'Rings are included in each syringe. 2 on the plunger, 1 on the tip. Replacement O'Ring sets in Viton® or Chemraz® materials are available.

Note: Stainless Steel syringes and parts are custom orders. Orders are non-cancelable and non-returnable.

Order Stainless Steel syringes and fittings separately. Choose either Luer Lock or SwageLok fittings, listed below the Stainless Steel syringes.

Replacement Fitting	Compatible with Listed Syringe Sizes:
	1, 3, 5 & 8 mL Thread: 1/4-28M	20, 50, 100 & 200 mL Thread: 3/8-24M
Luer Lock	PSSYRP-SSS-LL	PSSYRP-SSL-LL
1/16" SwageLok	PSSYRP-SSS-SL16	PSSYRP-SSL-SL16
1/8" SwageLok	PSSYRP-SSS-SL8	PSSYRP-SSL-SL8
1/4" SwageLok	n/a	PSSYRP-SSL-SL4

Replacement O'Rings for Stainless Steel Syringes
O'Rings insure against leakage. Syringes are guaranteed to be leak free to pressures in excess of 700 PSI.

Stainless Steel Syringes come standard with Viton® O'Rings.

Chemraz® O'Rings are ordered separately and are for applications requiring higher chemical resistance.

Each syringe uses 3 O-Rings, which are included in each set.

Replacement O-ring Set type	for Stainless Steel Syringe Sizes	Model # (set of 3)
Viton®	1, 3 & 8 mL	PSSYRP-SSORV8
	5 mL	PSSYRP-SSORV5
	20 mL	PSSYRP-SSORV20
	50 mL	PSSYRP-SSORV50
	100 mL	PSSYRP-SSORV100
	200 mL	PSSYRP-SSORV200
Chemraz®	1, 3 & 8 mL	PSSYRP-SSORK8
	5 mL	PSSYRP-SSORK5
	20 mL	PSSYRP-SSORK20
	50 mL	PSSYRP-SSORK50
	100 mL	PSSYRP-SSORK100
	200 mL	PSSYRP-SSORK200
