Syringe Pumps

Syringe Pumps

Previous page

VOLUME


















MATERIAL



TEMPERTURE (°C)


FITTING TYPE



PRESSURE MAX.







Stainless steel 750 psi 3mL Syringe

PSSYR-SS3
Stainless steel 750 psi 3mL Syringe


Product number     PSSYR-SS3
Material     Stainless Steel, Viton
Volume     3mL
Fitting type     None, please add fitting
Pressure max.     750 psi

  • Syringe tip thread 1/4-28F

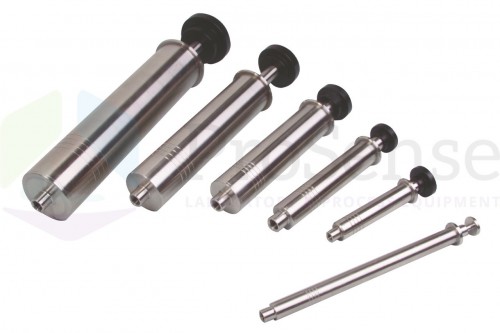

Stainless Steel Syringes
These syringes are intended for high pressure applications with good resistance to most aggressive liquids. All syringe barrels and plungers are manufactured with #316 stainless steel. Syringes are fully autoclavable.

Syringes are guaranteed to be leak free to pressures in excess of 750 psi. 8 mL syringes are guaranteed to be leak free to pressures in excess of 1500 psi.

3 Viton® O'Rings are included in each syringe. 2 on the plunger, 1 on the tip. Replacement O'Ring sets in Viton® or Chemraz® materials are available.

Note: Stainless Steel syringes and parts are custom orders. Orders are non-cancelable and non-returnable.

Order Stainless Steel syringes and fittings separately. Choose either Luer Lock or SwageLok fittings, listed below the Stainless Steel syringes.


Replacement Fitting Compatible with Listed Syringe Sizes:
  1, 3, 5 & 8 mL
Thread: 1/4-28M
20, 50, 100 & 200 mL
Thread: 3/8-24M

Luer Lock PSSYRP-SSS-LL PSSYRP-SSL-LL
1/16" SwageLok PSSYRP-SSS-SL16 PSSYRP-SSL-SL16
1/8" SwageLok PSSYRP-SSS-SL8 PSSYRP-SSL-SL8
1/4" SwageLok n/a PSSYRP-SSL-SL4


Replacement O'Rings for Stainless Steel Syringes
O'Rings insure against leakage. Syringes are guaranteed to be leak free to pressures in excess of 700 PSI.

Stainless Steel Syringes come standard with Viton® O'Rings.

Chemraz® O'Rings are ordered separately and are for applications requiring higher chemical resistance.

Each syringe uses 3 O-Rings, which are included in each set.



Replacement O-ring

Set type
for Stainless Steel
Syringe Sizes
Model #
(set of 3)



Viton® 1, 3 & 8 mL PSSYRP-SSORV8
5 mL PSSYRP-SSORV5
20 mL PSSYRP-SSORV20
50 mL PSSYRP-SSORV50
100 mL
PSSYRP-SSORV100
200 mL PSSYRP-SSORV200
Chemraz® 1, 3 & 8 mL PSSYRP-SSORK8
5 mL PSSYRP-SSORK5
20 mL PSSYRP-SSORK20
50 mL PSSYRP-SSORK50
100 mL PSSYRP-SSORK100
200 mL PSSYRP-SSORK200
